Standalone Series

An Independent Installation. No Change To Your Kitchen Layout.

Description

Made in India, Standalone Series food waste disposers are independent installations that can become part of any commercial or industrial kitchen without any change to its layout, with three inlet sizes to suit any size of operation.

Each unit is delivered ready for connecting to the existing flushing water, drainage and electrical supplies, and the wastewater outlet can be positioned to match the existing drain. Choose the SB for crushing in batches, or the SC for continuous feeding through an angled safety cover.

Leftover food, vegetable waste, bones and fruit peel are reduced to fine particles of up to 7 mm that flow away with the wastewater.

Material Specifications

Grinding Chamber	FG 200 / GG 200
Hopper	FG 200 / GG 200
Teeth Ring	AISI: SS 440 C
Impeller	AISI: SS 440 C
Cutter Blades	Hardened Chrome Steel
Shaft	AISI: SS 431
Mechanical Seal	Carbon / Ceramic

Series Variants

SB Series	Batch: a valve opens on start-up and water flushes the waste into the grinding chamber; cover limit switch
SC Series	Continuous feeding through an angled safety cover; cover limit switch
Installation	Separate unit, delivered ready for the existing flushing water, drainage and electrical supplies
Inlet sizes	125 mm, 250 mm, 300 mm
Models	CD 1100, 2200, 3200, 3200A, 5200A, 7200A, 10200A

Model Range

Model	1100	2200	3200	3200A	5200A	7200A	10200A
Capacity (kg/hr)	300	500	700	700	850	1000	1500
Motor power (HP/kW)	1/0.75	2/1.5	3/2.2	3/2.2	5.0/3.7	7.5/5.5	10.0/7.5
Current (A)	2.3	4.1	5.2	5.2	10	15	20
Motor speed (RPM)	1440	1440	1440	1440	1440	960	960
Inlet pipe (mm)	125	125	125	250	250	300	300
Outlet pipe (mm)	50	50	50	50	50	80	100
Net weight (kg)	70	80	90	130	160	350	400
Gross weight (kg)	100	110	120	170	200	400	450

Dimensional Details

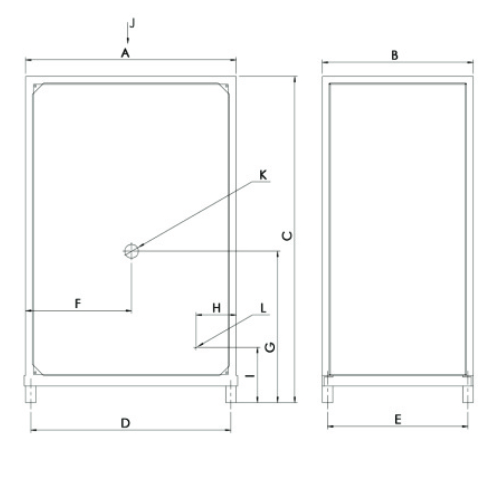

Standalone Series dimension drawing: front and side views marked A to L — Front and side views.

Model	A	B	C	D	E	F	G	H	I	Jinlet	Koutlet	Lwater
CD 1100	550	380	925	510	342	275	455	150	200	125	50	12.5
CD 2200	550	380	925	510	342	275	440	150	200	125	50	12.5
CD 3200	550	380	1190	727	510	385	580	150	200	125	50	12.5
CD 3200A	765	550	1190	727	510	385	580	150	200	250	50	12.5
CD 5200A	765	550	1190	727	510	385	610	150	200	250	50	12.5
CD 7200A	720	720	1370	780	–	360	650	150	200	300	80	12.5
CD 10200A	720	720	1370	780	–	360	650	150	200	300	100	12.5

All dimensions in mm. A × B: width × depth · C: overall height · D, E: foot spacing · F, G: outlet position · H, I: water connection position · J, K, L: inlet, outlet and water connection pipe sizes. Order as CD <model>-SB or -SC.

Delivered ready to connect.

SB Series: batchInstalled as a separate unit. When the crusher starts, a valve opens and water flushes the food waste into the grinding chamber and out to the wastewater system.

SC Series: continuousAn angled safety cover over the opening into the grinding chamber lets food waste be fed in continuously.

Cover limit switchOn both series the cover carries a limit switch that stops the motor as soon as the cover is lifted.

Ready to connectDelivered ready for connecting to the existing flushing water, drainage and electrical supplies.

Adjustable outletThe wastewater outlet can be positioned to line up with the existing drain.

Hardened grinding partsSS 440 C teeth ring and impeller, hardened chrome steel cutter blades, SS 431 shaft.
